MultiSample120

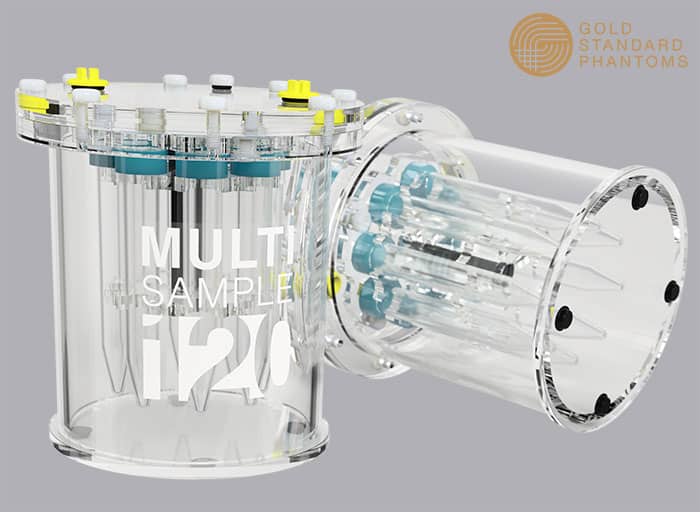

The MultiSample120 phantom is a 120mm diameter cylindrical phantom, capable of holding up to eight industry-standard 15ml polypropylene centrifuge tubes. It addresses the need for a standardised container for multiple sample vials when preparing phantoms in-house for advanced MRI techniques. The phantom is supplied empty as standard for filling by the user, making it ideal either for sequence/technique development or quality assurance of advanced imaging methods. Alternatively, the phantom can be filled with solutions to the customer’s specification.

Share

Get a Quote

Description

Applications:

  • Quantitative T1/T2 relaxometry
  • Metabolic imaging
  • Spectroscopy
  • Multi-nuclear imaging
  • Quantitative diffusion imaging
  • Proton density fat fraction

Additional information

Diameter

120mm (inner), 130mm (outer), 160mm (widest)

Length

165mm

Overall Dimensions

160mm x 160mm x 165mm (LxWxH)

Materials

Polycarbonate (body, lid)
Acrylic (sample holder)
Nylon (fasteners, filling plugs)
Nitrile (o-ring)

Sample Containers

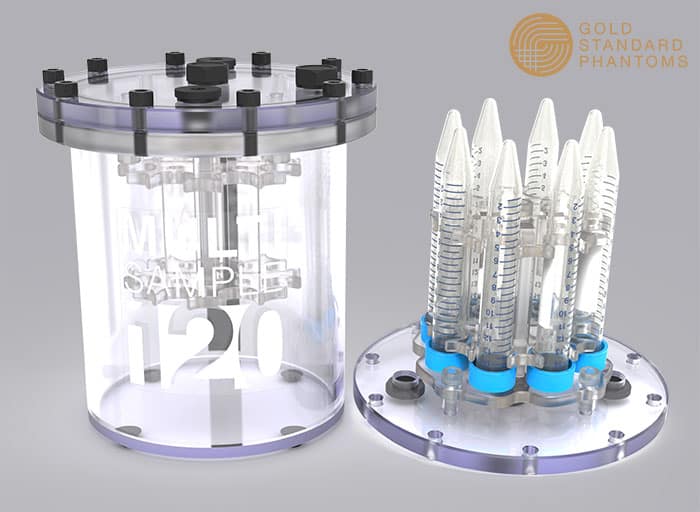

8x industry standard 15ml polypropylene centrifuge tubes.  Easy snap-in design means that tubes can easily be changed without the need for tools.

Sample Contents

Supplied empty as standard
Optional: sample solutions can be provided as a special order at the customer's request

Packaging

Foam-padded box for storage and transport

Optional Extras

Fittings for connecting to a circulating water system (system must be user supplied)
Foam insulating jacket
Insertable fibre optic thermometer probes
