MultiSample190F

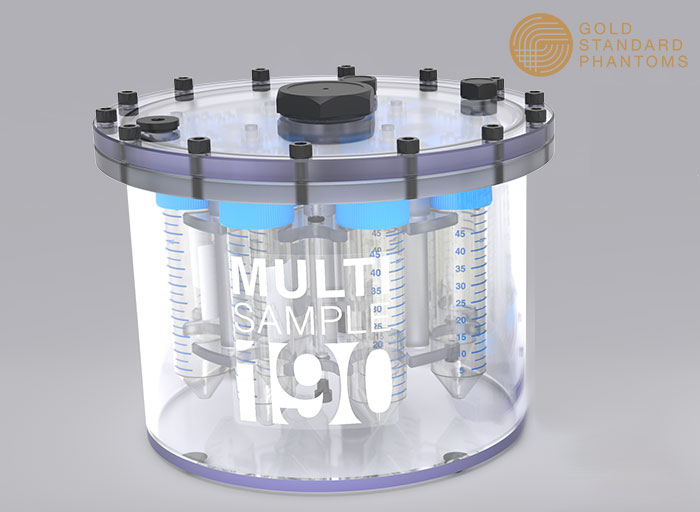

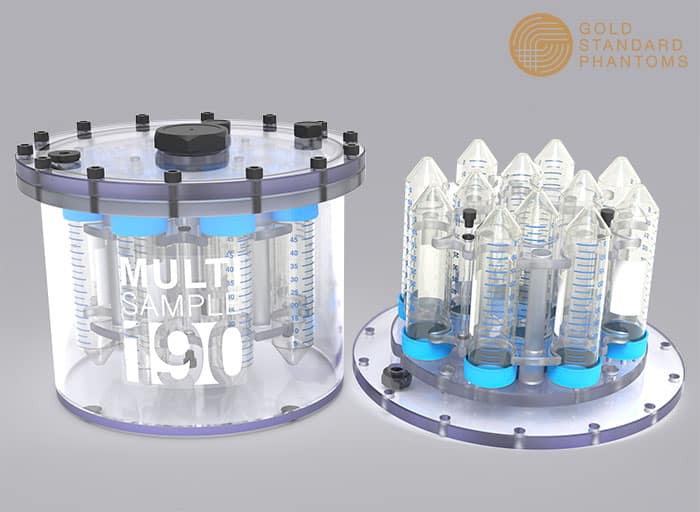

The MultiSample190F is a 190mm diameter cylindrical phantom, capable of holding up to twelve industry standard Falcon BD 50ml polypropylene vials. The phantom can be supplied pre-filled with configurations for diffusion or relaxometry, or empty for filling by the user, making it ideal either for acquisitions/technique development, or quality assurance of advanced imaging methods.

Share

Get a Quote

MULTISAMPLE 190F Information Sheet

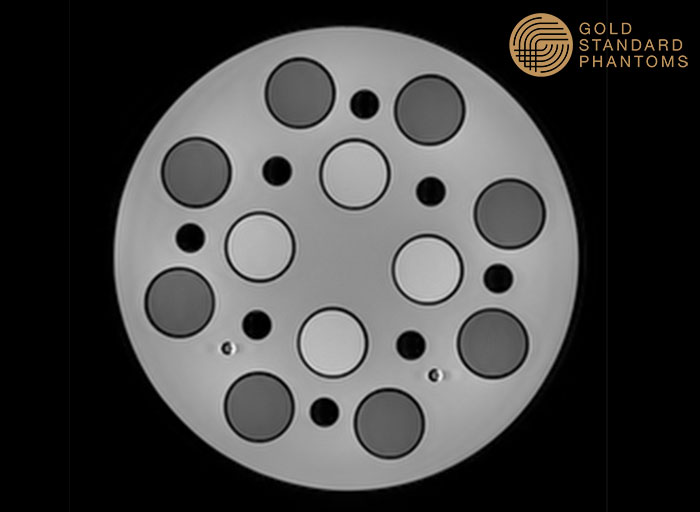

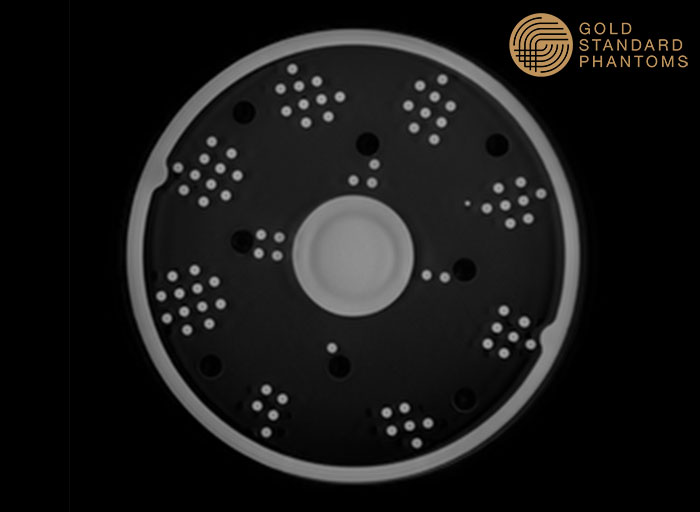

MULTISAMPLE 190F Demo Data
  • Standardised multi-vial phantom, using industry standard 50ml sample vials.
  • Available pre-filled with configurations for diffusion and relaxometry, or empty for your own unique applications.
  • Use for Quality Assurance testing and validation of advanced MRI techniques.

Applications

  • Quantitative T1/T2 relaxometry
  • Metabolic imaging
  • Spectroscopy
  • Multi-nuclear imaging
  • Quantitative diffusion imaging
  • Proton density fat fraction

Specifications

Diameter

190mm (internal volume)
200mm (outer cylinder)
228mm (widest point)

Length

168mm

Overall Dimensions

228 mm x 228 mm x 168 mm

Ports

1x 1/4” BSP (filling ports)
2x M12x1.5 (probe ports)
1x M40 port

Materials

Body and Lid: Polycarbonate
Sample holder: Polycarbonate and Acrylic
Fillable Tube Fiducials: Glass and EVA Plastic
Fasteners: GF Nylon and Polycarbonate
Plug: GF Nylon
Seals: Nitrile
Plug: GF Nylon
Seals: Nitrile

Sample Containers

12x Falcon BD 50ml polypropylene vials

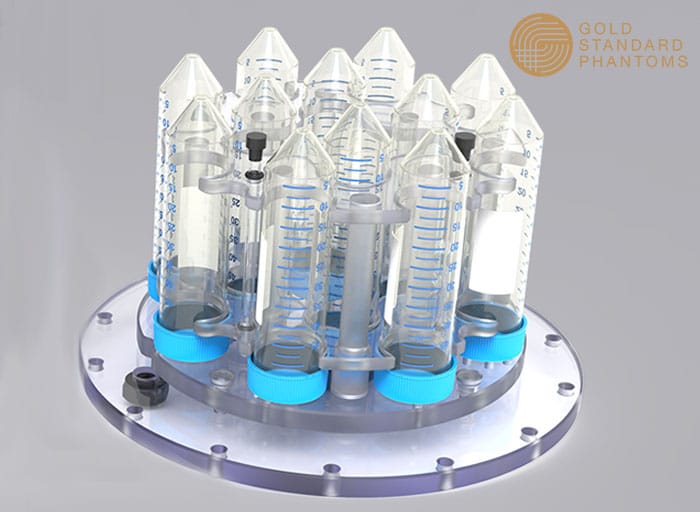

Easy snap in-design means tubes can be easily changed without the need to disassemble the sample holder.

Phantom Contents

Can be:
Supplied empty.
Filled with standard diffusion and relaxometry configurations.
Filled to customer specification on request.

Packaging

Foam padded box for storage and transport

Optional Extras

Insertable fibre optic thermometer probes
Torque screwdriver
(highly recommended for self-filling applications to prevent damage to the phantom from overtightening screws)
